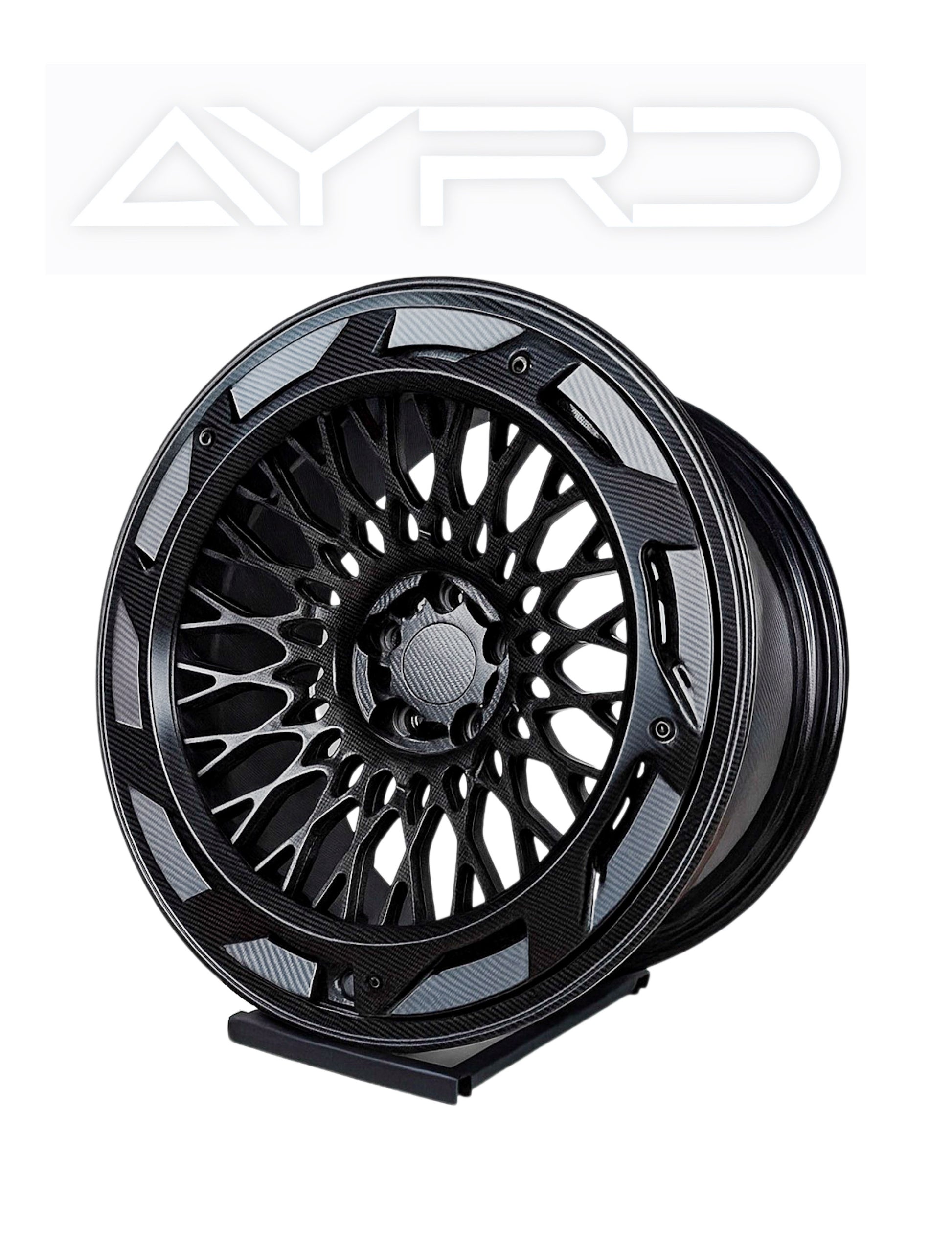

AYRD Signature Carbon Wheel set

Specifications

• BMW G Series Spec
• size: 20”
• Bolt pattern: 5X112, CB:66.6mm, ET 5/15
• Weight: 17 lb
• Material: High modulus aerospace grade carbon (T800 class), 7075-T6 Aluminum
• Construction: 3-piece bolted assembly
• Thermal Resistance: Up to 1,600°F (inner barrel)
• Applications: High-performance street, track, time attack, and motorsport use.
• Autoclave cured
• Quasi isotropic layup with 0°, 90°, and ±45° orientations
• Local reinforcement at bead seat and high-load zones
• Toughened epoxy resin system with a high glass transition temperature (Tg 230–260°C)
• Designed using Finite Element Analysis (FEA)
• Validated for radial, cornering, and torsional loads
• Low deflection under hard braking and lateral G-forces
• Strong resistance to impact and bead-seat deformation

Fastening

• Grade-10.9 hardware
• Preload torque calculated to maintain joint integrity without crushing the carbon flange
• Sealing O-ring bead between faces to prevent moisture intrusion into laminate edge
• Torque Spec: 140ft/lb

The inner barrel is coated with a ceramic thermal barrier coating (TBC) designed to withstand extreme brake heat.
